50-8MX62-2517, Timing Pulley

50-8MX62-2517 - Cast Iron Powerhouse® MX Pulleys

Product Details for 50-8MX62-2517

Comparable to: 8MX-50S-62, TB 8M-50S-62, 2765980, B8MCS-50-62, 50G-8M-62-2517, 20296085, 482003, 8MPC50S62, GTR-50G-8M-62

Click to Enlarge

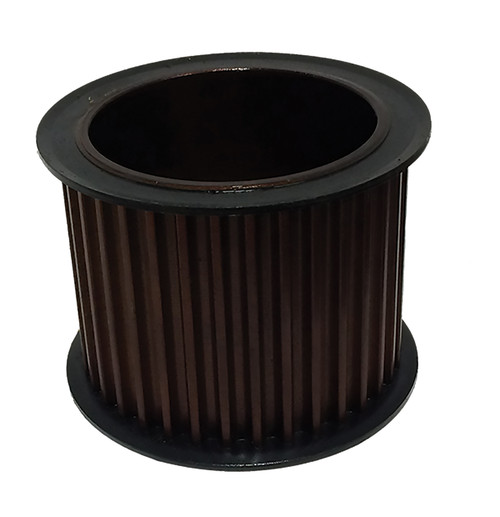

50-8MX62-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 50-8MX62-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50-8MX62-2517
Teeth 50
Tooth Style 8MX
For Belt Width (mm) 62
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 5.013
Outside Diameter (in) 4.950
Flange Diameter (in) 5.320
Face Width (in) 2.906
Overall Length (in) 2.906
Min. Bore (in) 0.500
Pulley Belt Width (in) 2.670
Unit System Inch
Bushing 2517
MOQ 1
Weight (lb) 6.08
Part Number Cross Reference 8MX-50S-62, TB 8M-50S-62, 2765980, B8MCS-50-62, 50G-8M-62-2517, 20296085, 482003, 8MPC50S62, GTR-50G-8M-62
