56-14P40-2517, Timing Pulley

56-14P40-2517 - Cast Iron Powerhouse® Pulleys

Product Details for 56-14P40-2517

Comparable to: P56-14MGT-40, 2763605, B5614M40TL, P56-14M-40-2517, 20182836

Click to Enlarge

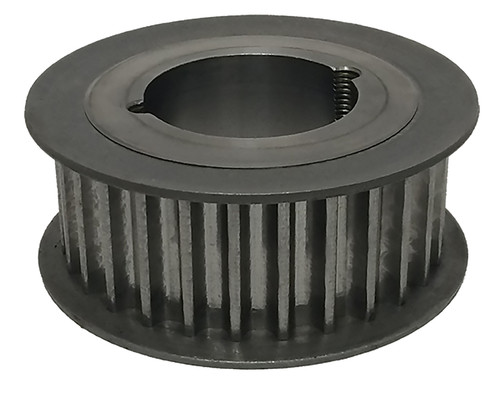

56-14P40-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 56-14P40-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 56-14P40-2517
Teeth 56
Tooth Style 14P
For Belt Width (mm) 40
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 9.825
Outside Diameter (in) 9.715
Flange Diameter (in) 10.355
Face Width (in) 2.130
Overall Length (in) 2.130
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.810
Unit System Inch
Bushing 2517
MOQ 1
Weight (lb) 32.16
Part Number Cross Reference P56-14MGT-40, 2763605, B5614M40TL, P56-14M-40-2517, 20182836
