56-5M09-6A5, Timing Pulley

56-5M09-6A5 - Aluminum Powerhouse®HTD® Pulleys

56-5M09-6A5

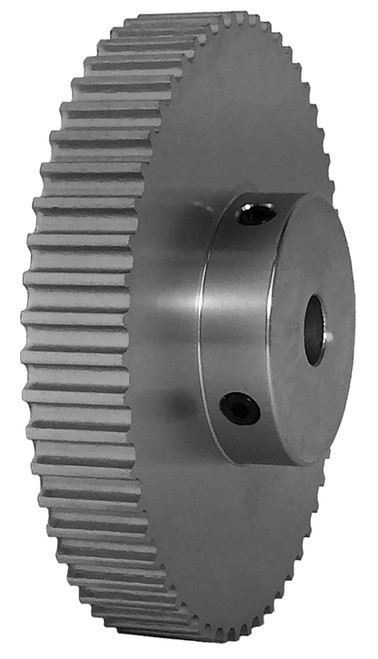

Click to Enlarge

56-5M09-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 56-5M09-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 56-5M09-6A5
Teeth 56
Tooth Style HTD5mm
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 3.509
Outside Diameter (in) 3.464
Face Width (in) 0.546
Overall Length (in) 0.937
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 89.00
O.D. (mm) 88.00
MOQ 1
Weight (lb) 0.61
Part Number Cross Reference A 6A25-056NF0912, A6A25-056NF0912, P56-5M-09AL, 56M5-L09M-6, 56-5M-09 X 3/8, 56-5M09-6A5, 56-5M09-6A5
Set Screw Quantity 2
