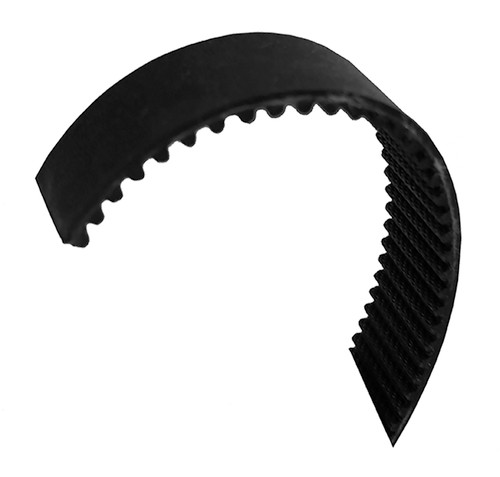

564-3M-09, Timing Belt

All belts are "cut-to-width" per order. Please allow time to process. If the inventory is ZERO, please call 877.787.4022 for lead time.

564-3M-09, A6R23M188090, A 6R23M188090, EPS0188F09mN, TB3EF9M-188, 564-3M-9

564-3M-09

564-3M-09, Timing Belt, Neoprene, Fiberglass

Learn more about 564-3M-09 Timing Belts and B&B Manufacturing, Inc.

Specifications

Product Number	564-3M-09
Teeth	188
Tooth Style	HTD 3mm
Unit System	Metric
Belt Type	Single Sided
Belt Width (mm)	9.00
Pitch Length (mm)	564.00
P.D. (mm)	564.00
Construction	Neoprene
Reinforcement	Fiberglass
MOQ	1
Weight (lb)	0.03
Part Number Cross Reference	A 6R23M188090, A6R23M188090, 564-3M-09, EPS0188F09mN, 5643M09, TB3EF9M-188, 564-3M-09, 564-3M-09, 564-3M-9, 564-3M-09, 564-3M-9, 564-3M-9, 564-3M-09

Related Products

Comparable to: A 6R23M188090, A6R23M188090, 564-3M-09, EPS0188F09mN, 5643M09, TB3EF9M-188, 564-3M-09, 564-3M-09, 564-3M-9, 564-3M-09, 564-3M-9, 564-3M-9, 564-3M-09
