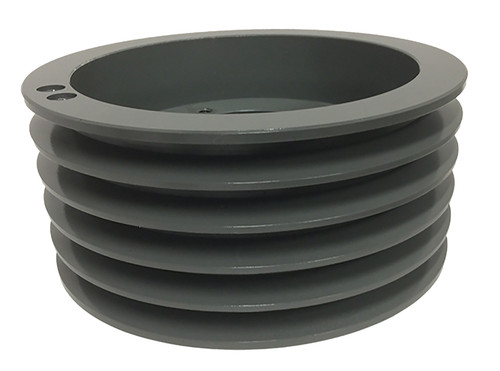

5B110SF, V-Belt Pulley

5B110SF

5B110SF, V-Belt Pulley, Cast Iron

Learn more about 5B110SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	5B110SF
Type	A-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SF Bushing
Outside Diameter (in)	11.350
Face Width (in)	4.000
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
MOQ	1
Pitch Dia. "A"	10.600
Pitch Dia. "B"	11.000
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	29.00
Part Number Cross Reference	QD5A10.8/B11.0, 5B110.SF, 5B110SF, 11.0-5B-SF, 20178942, 5B110-SF SHEAVE, 1105B, 5B11.0, 11.0-5B-SF, 5/B1100SF, 5B110, 5BQ110, 5B110SF, 5B110SF, 455698, 5B110SF
Grooves	5
