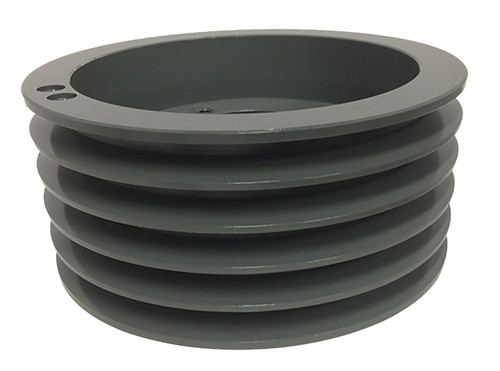

5B66SK, V-Belt Pulley

5B66SK

5B66SK, V-Belt Pulley, Cast Iron

Learn more about 5B66SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	5B66SK
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Outside Diameter (in)	6.950
Face Width (in)	4.000
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
MOQ	1
Pitch Dia. "A"	6.200
Pitch Dia. "B"	6.600
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	17.00
Part Number Cross Reference	QD5A6.4/B6.6, 5B66.SK, 5B66SK, 6.6-5B-SK, 20179401, 5B66-SK SHEAVE, 665B, 5B6.6, 6.6-5B-SK, 5/B660SK, 5B66, 5BQ66, 5B66SK, 5B66SK, 455691, 5B66SK
Grooves	5
