60-2P06MIA6 Powerhouse™ Pulleys

60-2P06MIA6, A 6D51M060DF0606, A6D51M060DF0606

Product Details for 60-2P06MIA6

Comparable to: 60-2P06MIA6, A 6D51M060DF0606, A6D51M060DF0606

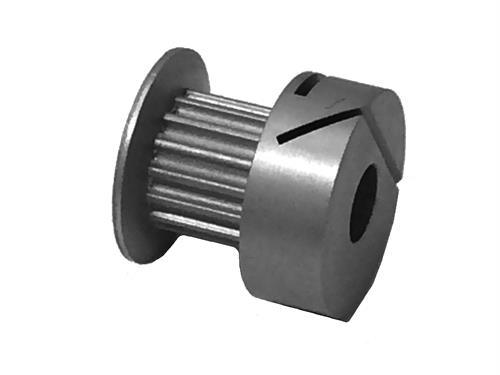

60-2P06MIA6, Timing Pulley, Powerhouse, 6 mm Bore, Aluminum, E-Z Lock Hub

Specifications

Product Number 60-2P06MIA6
Teeth 60
Tooth Style GT 2mm
For Belt Width (mm) 6.000
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 6.00
Face Width (in) 0.405
Unit System Metric
P.D. (mm) 38.20
O.D. (mm) 37.70
Flange Diameter (mm) 43.90
Overall Length (mm) 18.30
Hub Diameter (mm) 15.90
Number & Screw Size 1 x M2.5
Weight (lb) 0.16
Part Number Cross Reference 60-2P06MIA6, A 6D51M060DF0606, A6D51M060DF0606

Documentation

Download Catalog 2015_BBMAN_CATALOG_126.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 60-2P06MIA6_REACH_cert
RoHS Certification 60-2P06MIA6_RoHS_cert
