60-5M09M6A12, Timing Pulley

60-5M09M6A12 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 60-5M09M6A12

Comparable to: A 6A25M062NF0912, A6A25M060NF0912

Click to Enlarge

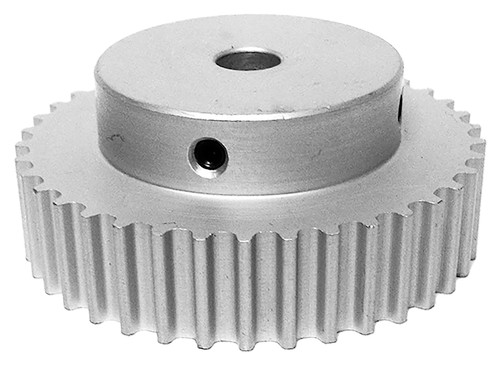

60-5M09M6A12, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60-5M09M6A12 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60-5M09M6A12
Teeth 60
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 12.00
Pulley Belt Width (mm) 9.00
Unit System Metric
P.D. (mm) 95.50
O.D. (mm) 94.40
Face Width (mm) 13.90
Overall Length (mm) 23.80
Hub Diameter (mm) 38.10
MOQ 1
Weight (lb) 0.45
Part Number Cross Reference A 6A25M062NF0912, A6A25M060NF0912
Set Screw Quantity 2
