60LP050, Timing Pulley

60LP050 - Cast Iron Imperial Pitch Pulleys

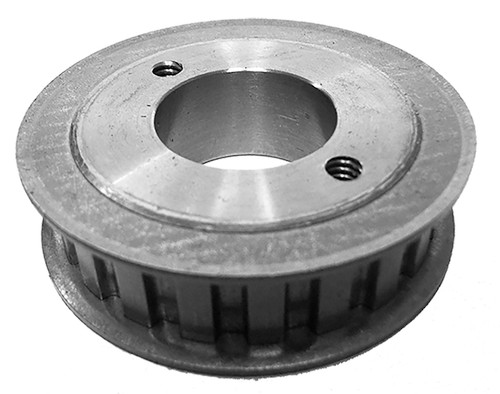

60LP050

60LP050 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

60LP050, Timing Pulley, Cast Iron

Learn more about 60LP050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60LP050
Teeth 60
Tooth Style L
For Belt Width (in) 0.5000
Type 13
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 7.162
Outside Diameter (in) 7.132
Face Width (in) 0.750
Overall Length (in) 2.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 182.00
O.D. (mm) 181.20
MOQ 1
Weight (lb) 4.86
Part Number Cross Reference 60LP050, 60LP050, 60LP050
