60XL037-6WA6, Timing Pulley

60XL037-6WA6 - Aluminum Imperial Pitch Pulleys

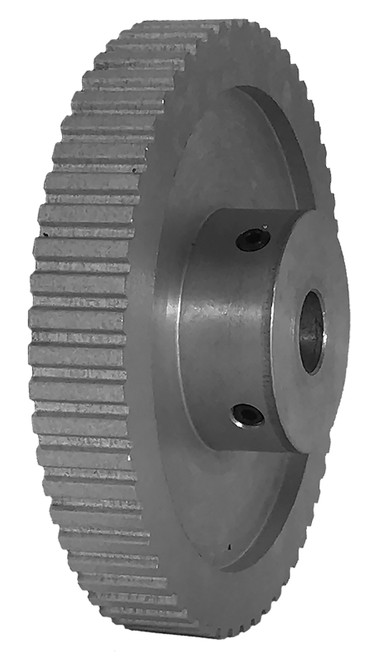

60XL037-6WA6

Click to Enlarge

60XL037-6WA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60XL037-6WA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60XL037-6WA6
Teeth 60
Tooth Style XL
For Belt Width (in) 0.3750
Type 6W
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.800
Face Width (in) 0.563
Overall Length (in) 1.000
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 97.00
O.D. (mm) 96.50
MOQ 1
Weight (lb) 0.58
Part Number Cross Reference A A-NF, A6A3-60NF03716, 60XL037-3A X 1/2, 60XL037-6WA6
Set Screw Quantity 2
