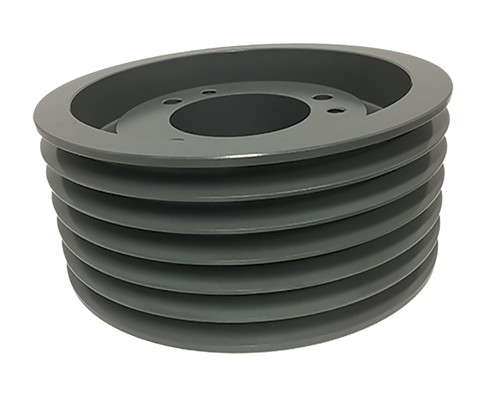

65V2800J, V-Belt Pulley

65V2800J

65V2800J, V-Belt Pulley, Cast Iron

Learn more about 65V2800J V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	65V2800J
Type	C-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for J Bushing
Pitch Diameter (in)	27.900
Outside Diameter (in)	28.000
Face Width (in)	4.438
Min. Bore (in)	1.5
Unit System	Inch
Bushing	J
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	148.00
Part Number Cross Reference	QD6/5V28.00, 6 5V 2800 J, 6-5V2800.J, 65V2800J, 5V28.0-6-J, 20180792, 6-5V28.00-J SHEAVE, 5V2806, 65V28.0, 5V28.0-6-J, 6/5V2800J, 6-5V28.00, 65V2800J, 6/5V2800J, 455389, 65V2800J
Grooves	6
