68-3M09-6A4, Timing Pulley

68-3M09-6A4 - Aluminum Powerhouse®HTD® Pulleys

68-3M09-6A4

68-3M09-6A4 - Aluminum Powerhouse®HTD® Pulleys

Line Drawing

Click to Enlarge

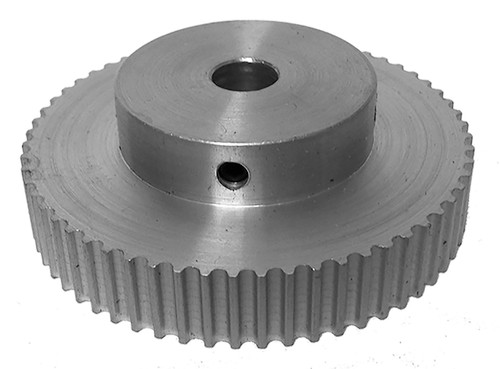

68-3M09-6A4, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 68-3M09-6A4 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	68-3M09-6A4
Teeth	68
Tooth Style	HTD3mm
For Belt Width (mm)	9.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.313
Bore Description	5/16 Inch Finished Bore
Pitch Diameter (in)	2.557
Outside Diameter (in)	2.527
Face Width (in)	0.500
Overall Length (in)	0.875
Hub Diameter (in)	1.250
Min. Bore (in)	0.3125
Unit System	Inch
P.D. (mm)	65.00
O.D. (mm)	64.20
MOQ	1
Weight (lb)	0.32
Part Number Cross Reference	A 6A23-068NF0910, A6A23-068NF0910, 68-3M-09 X 5/16, 68-3M09-6A4, 68-3M09-6A4
Set Screw Quantity	2

Comparable to: A 6A23-068NF0910, A6A23-068NF0910, 68-3M-09 X 5/16, 68-3M09-6A4, 68-3M09-6A4
