6B124SF, V-Belt Pulley

6B124SF, 12.4-6B-SF, 20178975, 1246B, 6B124

Product Details for 6B124SF

Comparable to: 6B124SF, QD6A12.2/B12.4, 12.4-6B-SF, 20178975, 1246B, 6B1

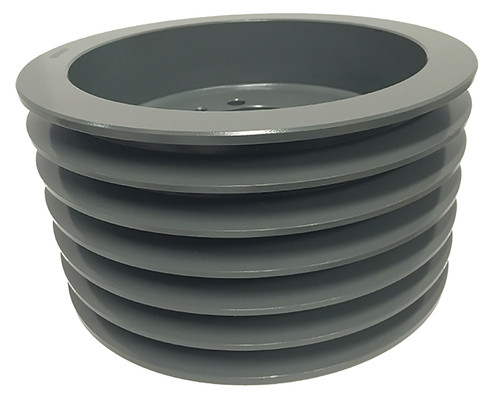

6B124SF, V-Belt Pulley, Cast Iron

Learn more about 6B124SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 6B124SF
Type A3
Material Cast Iron
Bore Type QD
Bore (in) SF
Outside Diameter (in) 12.750
Face Width (in) 4.750
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
Max. Bore (in) 2.9375
Pitch Dia. "A" 12.000
Pitch Dia. "B" 12.400
For Belt Type A or B
Weight (lb) 39.00
Part Number Cross Reference 6B124SF, QD6A12.2/B12.4, 12.4-6B-SF, 20178975, 1246B, 6B1
