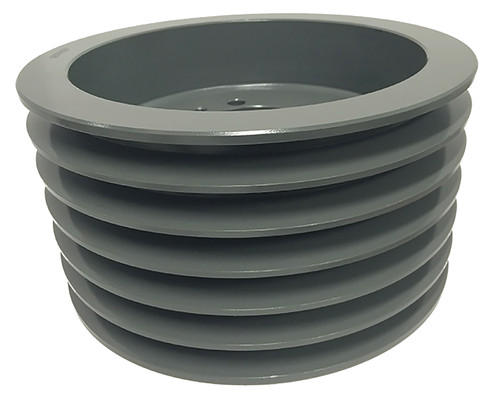

6B154SF, V-Belt Pulley

6B154SF

6B154SF, V-Belt Pulley, Cast Iron

Learn more about 6B154SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	6B154SF
Type	A-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SF Bushing
Outside Diameter (in)	15.750
Face Width (in)	4.750
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
MOQ	1
Pitch Dia. "A"	15.000
Pitch Dia. "B"	15.400
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	50.00
Part Number Cross Reference	QD6A15.2/B15.4, 6B154.SF, 6B154SF, 15.4-6B-SF, 20179050, 6B154-SF SHEAVE, 1546B, 6B15.4, 15.4-6B-SF, 6/B1540SF, 6B154, 6BQ154, 6B154SF, 6B154SF, 455734, 6B154SF
Grooves	6
