6B184SF, V-Belt Pulley

6B184SF

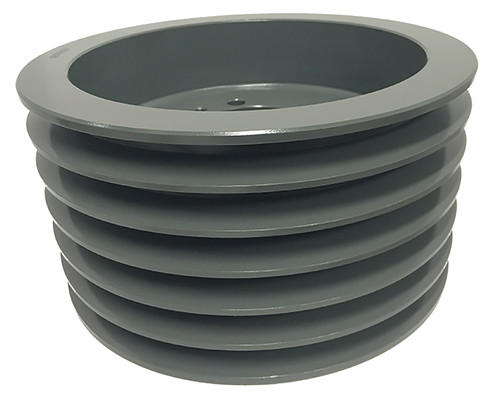

6B184SF, V-Belt Pulley, Cast Iron

Learn more about 6B184SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	6B184SF
Type	A-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SF Bushing
Outside Diameter (in)	18.750
Face Width (in)	4.750
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
MOQ	1
Pitch Dia. "A"	18.000
Pitch Dia. "B"	18.400
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	62.00
Part Number Cross Reference	QD6A18.2/B18.4, 6B184.SF, 6B184SF, 18.4-6B-SF, 20179118, 6B184-SF SHEAVE, 1846B, 6B18.4, 18.4-6B-SF, 6/B1840SF, 6B184, 6BQ184, 6B184SF, 6B184SF, 455736, 6B184SF
Grooves	6
