6B68SK, V-Belt Pulley

6B68SK, 6.8-6B-SK, 20179411, 686B, 6B68

Product Details for 6B68SK

Comparable to: 6B68SK, QD6A6.6/B6.8, 6.8-6B-SK, 20179411, 686B, 6B

Click to Enlarge

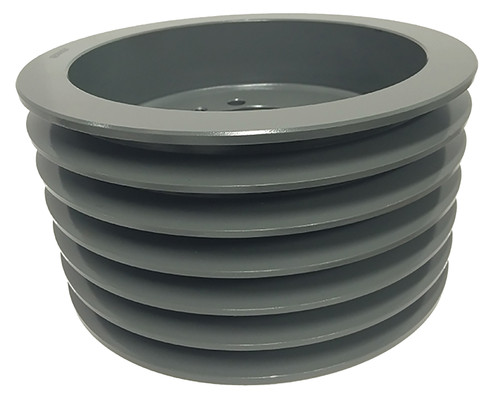

6B68SK, V-Belt Pulley, Cast Iron

Learn more about 6B68SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 6B68SK
Type A1
Material Cast Iron
Bore Type QD
Bore (in) SK
Outside Diameter (in) 7.150
Face Width (in) 4.750
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
Max. Bore (in) 2.625
Pitch Dia. "A" 6.400
Pitch Dia. "B" 6.800
For Belt Type A or B
Weight (lb) 19.00
Part Number Cross Reference 6B68SK, QD6A6.6/B6.8, 6.8-6B-SK, 20179411, 686B, 6B
