6J300JA, Poly-V Pulley

6J300JA

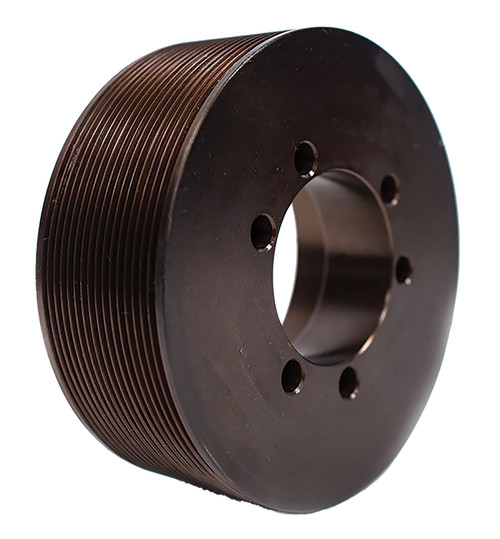

6J300JA, Poly-V Pulley, Steel, Black Oxide,

Learn more about 6J300JA Poly-V Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	6J300JA
Material	Steel
Finish	Black Oxide
Bore Type	QD
Bore Description	Bored for JA Bushing
Pitch Diameter (in)	3.030
Outside Diameter (in)	3.000
Min. Bore (in)	0.5
Unit System	Inch
Bushing	JA
Ribs	6.000
MOQ	1
Sheave Type	J
For Belt Type	J-Section
Weight (lb)	0.86
Part Number Cross Reference	6J300, 6J300JA, 6J300JA
