71-8MX36-2517, Timing Pulley

71-8MX36-2517 - Cast Iron Powerhouse® MX Pulleys

Product Details for 71-8MX36-2517

Comparable to: 8MX-71S-36, 77183071, 2765725, B8MCS-71-36, 71G-8M-36-2517, 20839761, 481977, 8MPC71S36

Click to Enlarge

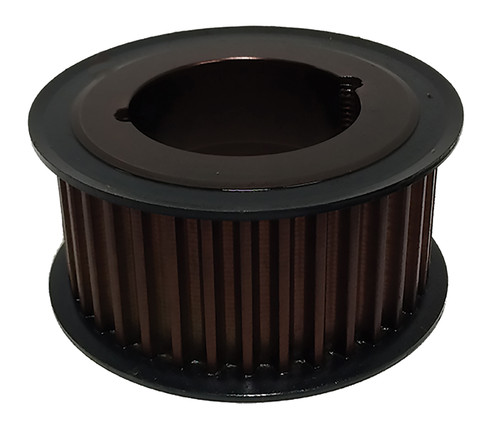

71-8MX36-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 71-8MX36-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 71-8MX36-2517
Teeth 71
Tooth Style 8MX
For Belt Width (mm) 36
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 7.118
Outside Diameter (in) 7.055
Flange Diameter (in) 7.575
Face Width (in) 1.859
Overall Length (in) 1.859
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.620
Unit System Inch
Bushing 2517
MOQ 1
Weight (lb) 14.33
Part Number Cross Reference 8MX-71S-36, 77183071, 2765725, B8MCS-71-36, 71G-8M-36-2517, 20839761, 481977, 8MPC71S36
