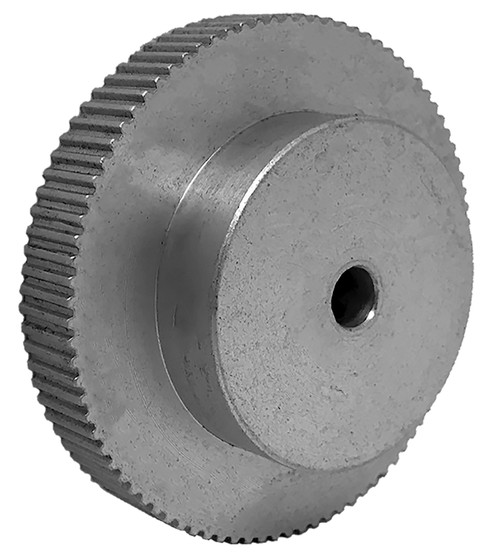

72LT187-6A3, Timing Pulley

72LT187-6A3

Click to Enlarge

72LT187-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72LT187-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	72LT187-6A3
Teeth	72
Tooth Style	LT
For Belt Width (in)	0.1875
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.870
Outside Diameter (in)	1.850
Face Width (in)	0.750
Overall Length (in)	1.202
Hub Diameter (in)	1.202
Min. Bore (in)	0.25
Unit System	Inch
P.D. (mm)	48.00
O.D. (mm)	47.00
MOQ	1
Weight (lb)	0.13
Part Number Cross Reference	A 6A6-72NF01808, A6A6-72NF01808, 72LT-187 X 1/4-6, 72M187-2A X 1/4, 72LT187-6A3, 72LT187-6A3
Set Screw Quantity	2
