72MP037-6A3, Timing Pulley

72MP037-6A3 - Aluminum Imperial Pitch Pulleys

72MP037-6A3

Click to Enlarge

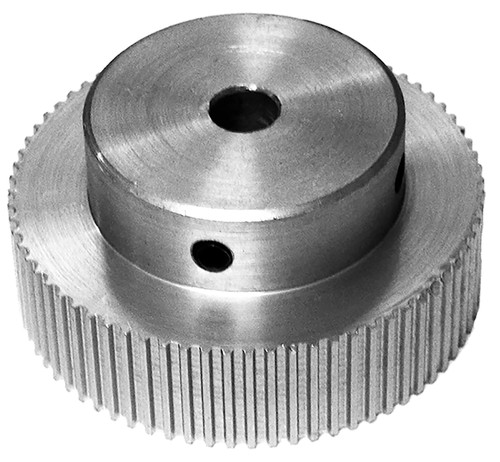

72MP037-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72MP037-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72MP037-6A3
Teeth 72
Tooth Style MXL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.833
Outside Diameter (in) 1.813
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.195
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.500
Unit System Inch
P.D. (mm) 47.00
O.D. (mm) 46.10
MOQ 1
Weight (lb) 0.17
Part Number Cross Reference A 6A16-072NF3708, A6A16-072NF3708, 72MP-037 1/4 6, 72MXL037-2A X 1/4, 72MP037-6A3, 72MP037-6A3
Set Screw Quantity 2
