75LT187-6A3, Timing Pulley

75LT187-6A3 - Aluminum Imperial Pitch Pulleys

75LT187-6A3

Click to Enlarge

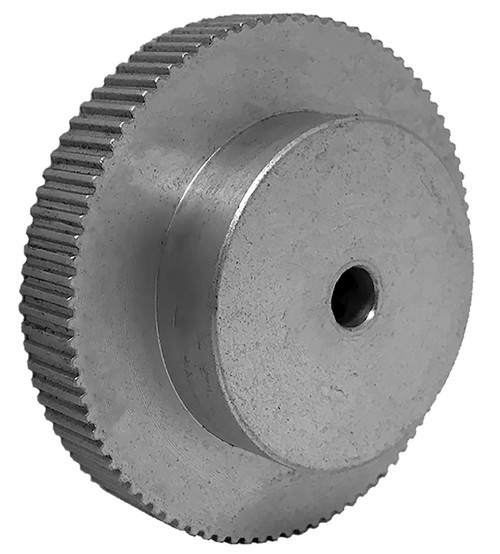

75LT187-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 75LT187-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 75LT187-6A3
Teeth 75
Tooth Style LT
For Belt Width (in) 0.1875
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.948
Outside Diameter (in) 1.928
Face Width (in) 0.750
Overall Length (in) 1.266
Hub Diameter (in) 1.266
Min. Bore (in) 0.250
Unit System Inch
P.D. (mm) 50.00
O.D. (mm) 49.00
MOQ 1
Weight (lb) 0.15
Part Number Cross Reference A 6A6-75NF01808, A6A6-75NF01808, 75M187-2A X 1/4, 75LT187-6A3
Set Screw Quantity 2
