80-8M-PS8A Bar Stock

80-8M-PS8A, 80-8M-PS-8A

Product Details for 80-8M-PS8A

Comparable to: 80-8M-PS8A, 80-8M-PS-8A

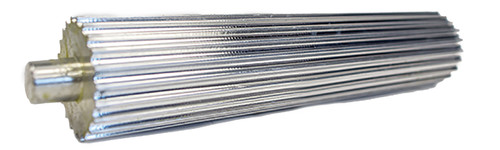

80-8M-PS8A, Timing Pulley Stock, Powerhouse HTD, 10 Inch Usable Length, Aluminum

Specifications

Product Number 80-8M-PS8A
Teeth 80
Tooth Style HTD 8mm
Material Aluminum
Pitch Diameter (in) 8.020
Outside Diameter (in) 7.966
Overall Length (in) 9.000
Unit System Inch
Min. Usable Length (in) 10.000
P.D. (mm) 203.70
O.D. (mm) 202.30
Weight (lb) 38.29
List Price (1-9 Qty.) (USD) 632.27
Discount Price (10-24 Qty.) (USD) 474.2
Discount Price (25-49 Qty.) (USD) 379.36
Discount Price (50-99 Qty.) (USD) 347.75
Part Number Cross Reference 80-8M-PS8A, 80-8M-PS-8A

Documentation

Download Catalog 2015_BBMAN_CATALOG_304.pdf
For custom parts click here custom.html
REACH Certification 80-8M-PS8A_REACH_cert
RoHS Certification 80-8M-PS8A_RoHS_cert
