80MP025M6A8 Metric Pulleys

80MP025M6A8, A 6A16M080NF6008

Product Details for 80MP025M6A8

Comparable to: 80MP025M6A8, A 6A16M080NF6008,

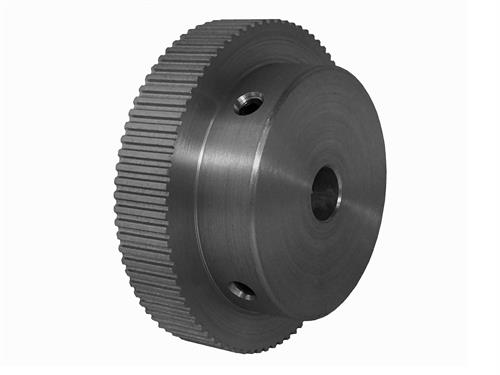

80MP025M6A8, Timing Pulley, Powerhouse Timing, 8 mm Bore, Aluminum

Specifications

Product Number 80MP025M6A8
Teeth 80
Tooth Style MXL
For Belt Width (in) 0.250
Type 6
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 8.00
Set Screw 2 x M4 @ 90°
Pulley Belt Width (mm) 9.50
Unit System Metric
P.D. (mm) 51.70
O.D. (mm) 51.20
Overall Length (mm) 19.10
Hub Diameter (mm) 38.10
Weight (lb) 0.30
List Price (1-9 Qty.) (USD) 16.93
Discount Price (10-24 Qty.) (USD) 15.66
Discount Price (25-49 Qty.) (USD) 11.43
Discount Price (50-99 Qty.) (USD) 11
Discount Price (100-249 Qty.) (USD) 10.16
Part Number Cross Reference 80MP025M6A8, A 6A16M080NF6008,

Documentation

Download Catalog 2015_BBMAN_CATALOG_9.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 80MP025M6A8_REACH_cert
RoHS Certification 80MP025M6A8_RoHS_cert
