80MP037-6A4 Imperial Pitch Pulleys

80MP037-6A4, A 6A16-080NF3710, A6A16-080NF3710, 80MP-037 5/16  6, 80MXL037-2A X 5/

Product Details for 80MP037-6A4

Comparable to: 80MP037-6A4, A 6A16-080NF3710, A6A16-080NF3710, 80MP-037 5/16 6, 80MXL037-2A X 5/

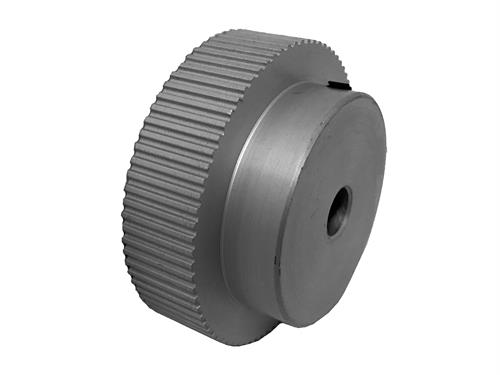

80MP037-6A4, Timing Pulley, Powerhouse Timing, 5/16 Inch Bore, Aluminum

Specifications

Product Number 80MP037-6A4
Teeth 80
Tooth Style MXL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.313
Pulley Belt Width (in) 0.500
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.35
Part Number Cross Reference 80MP037-6A4, A 6A16-080NF3710, A6A16-080NF3710, 80MP-037 5/16 6, 80MXL037-2A X 5/

Documentation

Download Catalog 2015_BBMAN_CATALOG_6.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 80MP037-6A4_REACH_cert
RoHS Certification 80MP037-6A4_RoHS_cert
