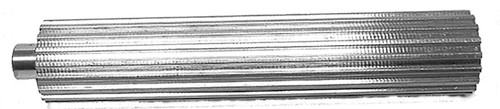

80T5-PS160A Bar Stock

80T5-PS160A, A6A34M080T16, A 6A34M080T16, 80T5-PS-160

Product Details for 80T5-PS160A

Comparable to: 80T5-PS160A, A6A34M080T16, A 6A34M080T16, 80T5-PS-160

80T5-PS160A, Timing Pulley Stock, Powerhouse Timing, 160 mm Usable Length, Aluminum

Specifications

Product Number 80T5-PS160A
Teeth 80
Tooth Style T5mm
Material Aluminum
Pitch Diameter (in) 5.019
Outside Diameter (in) 4.980
Overall Length (in) 7.300
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 127.50
O.D. (mm) 126.50
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
Weight (lb) 12.21
List Price (1-9 Qty.) (USD) 148.89
Discount Price (10-24 Qty.) (USD) 111.66
Discount Price (25-49 Qty.) (USD) 96.78
Discount Price (50-99 Qty.) (USD) 89.33
Part Number Cross Reference 80T5-PS160A, A6A34M080T16, A 6A34M080T16, 80T5-PS-160

Documentation

Download Catalog 2015_BBMAN_CATALOG_281.pdf
For custom parts click here custom.html
REACH Certification 80T5-PS160A_REACH_cert
RoHS Certification 80T5-PS160A_RoHS_cert
