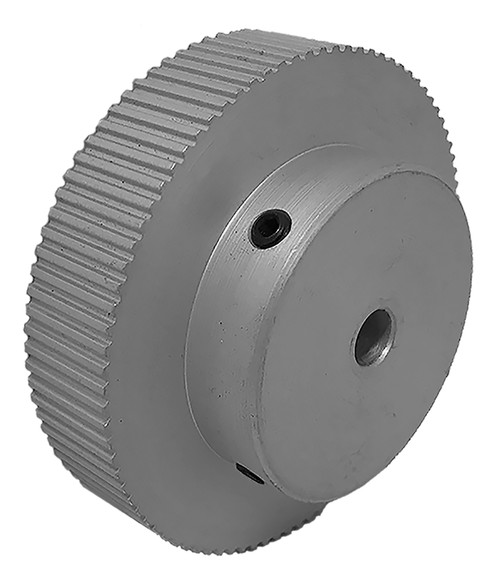

88LT312-6A5, Timing Pulley

88LT312-6A5

Click to Enlarge

88LT312-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 88LT312-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	88LT312-6A5
Teeth	88
Tooth Style	LT
For Belt Width (in)	0.3125
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	2.286
Outside Diameter (in)	2.266
Face Width (in)	0.875
Overall Length (in)	1.500
Hub Diameter (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	58.00
O.D. (mm)	57.50
MOQ	1
Weight (lb)	0.24
Part Number Cross Reference	A 6A6-88NF03112, A6A6-88NF03112, 88LT-312 X 3/8 6, 88M312-2A X 3/8, 88LT312-6A5, 88LT312-6A5
Set Screw Quantity	2
