88V2480N, V-Belt Pulley

88V2480N, QD8/8V24.

Product Details for 88V2480N

Comparable to: QD8/8V24.80, 8 8V 2480 N, 8-8V2480.N, 8V24.8-8-N PULLEY, 20180994, 8/8V24.8–N, 88V24.8, 8V24.8-8-N, 8/8V2480N, 455468

Click to Enlarge

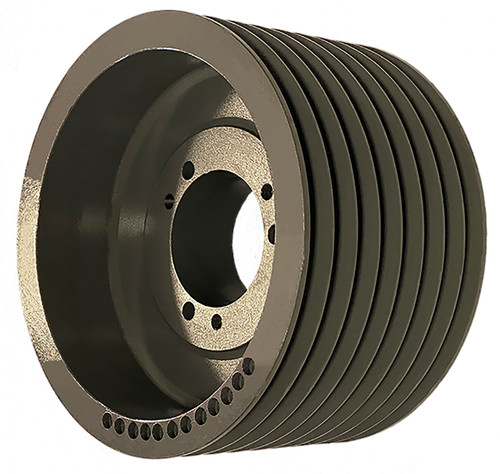

88V2480N, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 88V2480N in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 88V2480N
Material Cast Iron
Bore Type QD
Pitch Diameter (in) 24.600
Outside Diameter (in) 24.800
Face Width (in) 9.375
Min. Bore (in) 2.4375
Unit System Inch
Bushing N
E (in) 3/16
L (in) 8 1/8
M (in) 1 1/16
MOQ 1
Weight (lb) 320.00
Part Number Cross Reference QD8/8V24.80, 8 8V 2480 N, 8-8V2480.N, 8V24.8-8-N PULLEY, 20180994, 8/8V24.8–N, 88V24.8, 8V24.8-8-N, 8/8V2480N, 455468
Grooves 8
Set Screw Quantity 0
