88V3000N, V-Belt Pulley

88V3000N, QD8/8V30.

Product Details for 88V3000N

Comparable to: QD8/8V30.00, 8 8V 3000 N, 8-8V3000.N, 8V30.0-8-N PULLEY, 20181000, 8/8V30.0–N, 88V30.0, 8V30.0-8-N, 8/8V3000N, 456664

Click to Enlarge

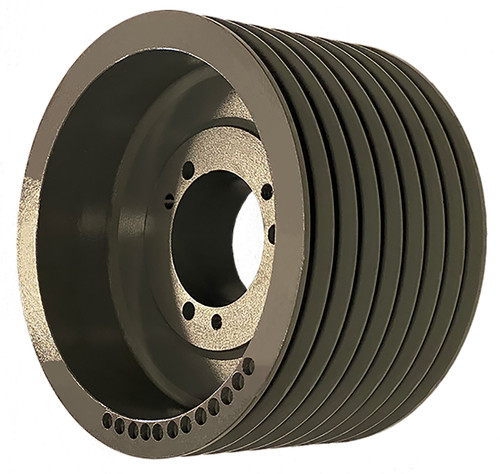

88V3000N, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 88V3000N in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 88V3000N
Material Cast Iron
Bore Type QD
Pitch Diameter (in) 29.800
Outside Diameter (in) 30.000
Face Width (in) 9.375
Min. Bore (in) 2.4375
Unit System Inch
Bushing N
E (in) 3/16
L (in) 8 1/8
M (in) 1 1/16
MOQ 1
Weight (lb) 375.00
Part Number Cross Reference QD8/8V30.00, 8 8V 3000 N, 8-8V3000.N, 8V30.0-8-N PULLEY, 20181000, 8/8V30.0–N, 88V30.0, 8V30.0-8-N, 8/8V3000N, 456664
Grooves 8
Set Screw Quantity 0
