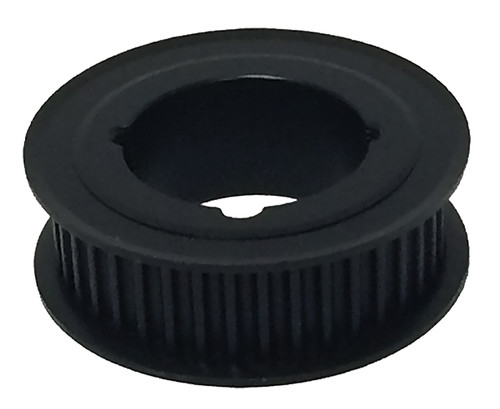

90-5P15-1610, Timing Pulley

90-5P15-1610 - Cast Iron Powerhouse® Pulleys

90-5P15-1610

90-5P15-1610 - Cast Iron Powerhouse® Pulleys Line Drawing

Click to Enlarge

90-5P15-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 90-5P15-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 90-5P15-1610
Teeth 90
Tooth Style 5P
For Belt Width (mm) 15.00
Type B-1
Material Ductile Iron
Finish Black Oxide
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 5.639
Outside Diameter (in) 5.594
Face Width (in) 0.880
Overall Length (in) 1.000
Min. Bore (in) 0.5
Unit System Inch
Bushing 1610
P.D. (mm) 143.00
O.D. (mm) 142.10
MOQ 1
Weight (lb) 4.90
Part Number Cross Reference P90-5MGT-15, P90-5M-15-1610 HT250 SPKT, 90-5P15-1610, 112479, 90-5P15-1610
