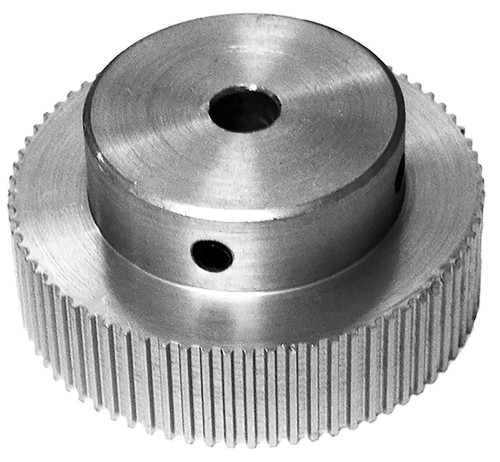

90MP037-6A4, Timing Pulley

90MP037-6A4 - Aluminum Imperial Pitch Pulleys

Product Details for 90MP037-6A4

Comparable to: 90MP037-6A4, A 6A16-090NF3710, A6A16-090NF3710, 90MP-037 5/16 6, 90MXL037-2A X 5/

90MP037-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 90MP037-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 90MP037-6A4
Teeth 90
Tooth Style MXL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.292
Outside Diameter (in) 2.272
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.500
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.29
Part Number Cross Reference 90MP037-6A4, A 6A16-090NF3710, A6A16-090NF3710, 90MP-037 5/16 6, 90MXL037-2A X 5/
