96HR200, Timing Pulley

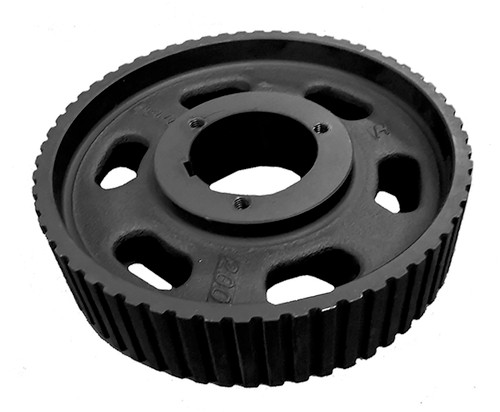

96HR200 - Cast Iron Imperial Pitch Pulleys

96HR200

96HR200 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

96HR200, Timing Pulley, Cast Iron

Learn more about 96HR200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 96HR200
Teeth 96
Tooth Style H
For Belt Width (in) 2.0000
Type A-3
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for R1 Bushing
Pitch Diameter (in) 15.279
Outside Diameter (in) 15.225
Face Width (in) 2.875
Overall Length (in) 3.297
Min. Bore (in) 1.125
Unit System Inch
Bushing R1
P.D. (mm) 388.00
O.D. (mm) 386.70
MOQ 1
Weight (lb) 32.80
Part Number Cross Reference 96HR200, 96HR200, 96HR200
