96LT187-6A5, Timing Pulley

96LT187-6A5

Click to Enlarge

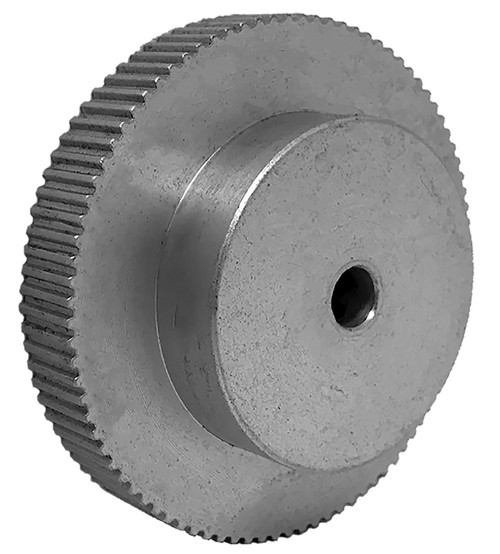

96LT187-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 96LT187-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	96LT187-6A5
Teeth	96
Tooth Style	LT
For Belt Width (in)	0.1875
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	2.494
Outside Diameter (in)	2.474
Face Width (in)	0.750
Overall Length (in)	1.500
Hub Diameter (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	63.00
O.D. (mm)	62.80
MOQ	1
Weight (lb)	0.22
Part Number Cross Reference	A 6A6-96NF01812, A6A6-96NF01812, 96LT-187 X 3/8-6, 96M187-2A X 3/8, 96LT187-6A5, 96LT187-6A5
Set Screw Quantity	2
