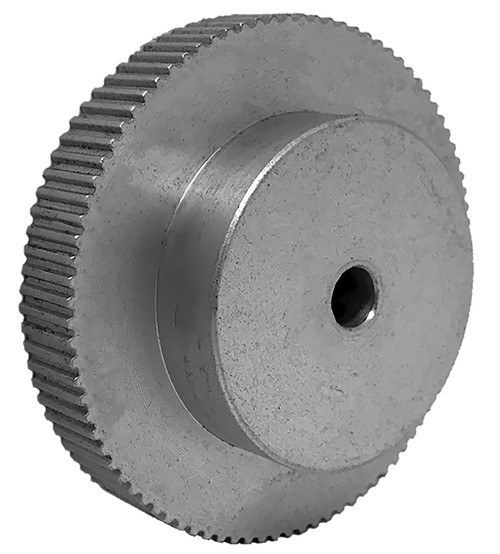

98LT187-6A5, Timing Pulley

98LT187-6A5 - Aluminum Imperial Pitch Pulleys


Click to Enlarge

98LT187-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 98LT187-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number 98LT187-6A5
Teeth 98
Tooth Style LT
For Belt Width (in) 0.1875
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 2.545
Outside Diameter (in) 2.525
Face Width (in) 0.750
Overall Length (in) 1.500
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 65.00
O.D. (mm) 64.10
Weight (lb) 0.22
Part Number Cross Reference A 6A6-98NF01812, A6A6-98NF01812, 98M187-2A X 3/8, 98LT187-6A5
Set Screw Quantity 2
