AK104x1, V-Belt Pulley

AK104x1

AK104x1

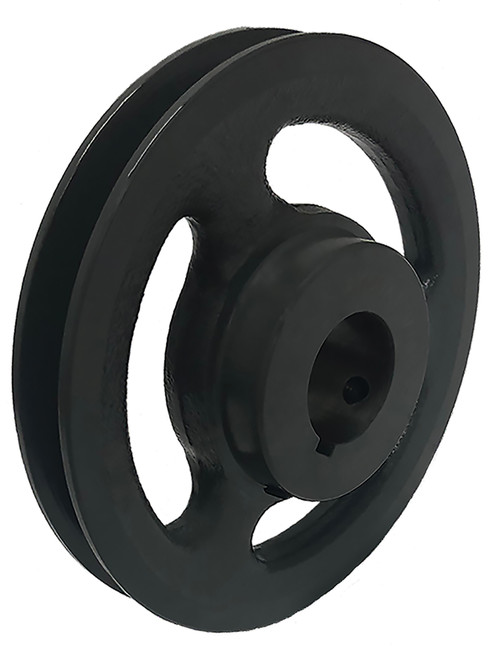

AK104x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries AK104x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number AK104x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 inch Finished Bore
Outside Diameter (in) 10.250
Face Width (in) 0.750
Overall Length (in) 1.469
Hub Diameter (in) 1.875
Min. Bore (in) 0.625
Unit System Inch
MOQ 1
Pitch Dia. "A" 10.000
Pitch Dia. "3L" 9.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 6.60
Part Number Cross Reference AK104 1, AK104x1, AK104-1 PULLEY, 20179897, 121811, AK1041, AK104-1, 00755439, MA103x1, AK104-1, AK104-1, AK104x1
Grooves 1
Set Screw Quantity 1

Related Products

Comparable to: AK104 1, AK104x1, AK104-1 PULLEY, 20179897, 121811, AK1041, AK104-1, 00755439, MA103x1, AK104-1, AK104-1, AK104x1
