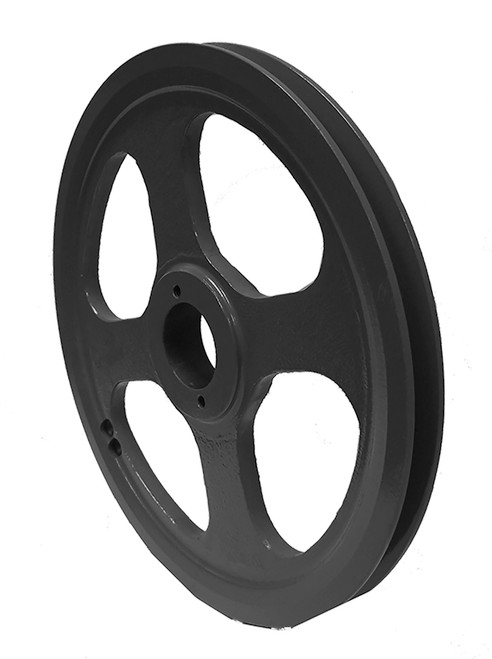

AK124H, V-Belt Pulley

AK124H, AK124-QT, 20179569, MAL124

AK124H

AK124H, V-Belt Pulley, Cast Iron

Learn more about AK124H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number AK124H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) Bored for H Bushing
Outside Diameter (in) 12.250
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 12.000
Pitch Dia. "3L" 11.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 6.10
Part Number Cross Reference AK124QT, AK124H, AK124-QT, 20179569, AK124, AK124-QT, AK124H, MAL123, AK124QT, AK124H, AK124H, AK124H
Grooves 1

Related Products

Comparable to: AK124QT, AK124H, AK124-QT, 20179569, AK124, AK124-QT, AK124H, MAL123, AK124QT, AK124H, AK124H, AK124H
