AK134H, V-Belt Pulley

AK134H, AK134-QT, 20179570, MAL134

Product Details for AK134H

Comparable to: AK134H, AK134-QT, 20179570, AK134, MAL133, AK134QT

Click to Enlarge

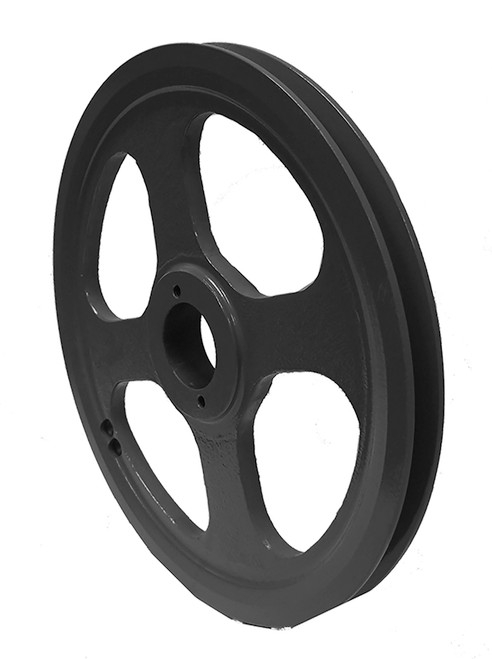

AK134H, V-Belt Pulley, Cast Iron

Learn more about AK134H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number AK134H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 13.250
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 13.000
Pitch Dia. "3L" 12.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 7.40
Part Number Cross Reference AK134H, AK134-QT, 20179570, AK134, MAL133, AK134QT
Grooves 1
