AK41x1, V-Belt Pulley

Product Details for AK41x1

Comparable to: AK41 1., AK41-1 PULLEY, 20180012, 121540, AK411, AK41-1, 00755090, MA40x1

Click to Enlarge

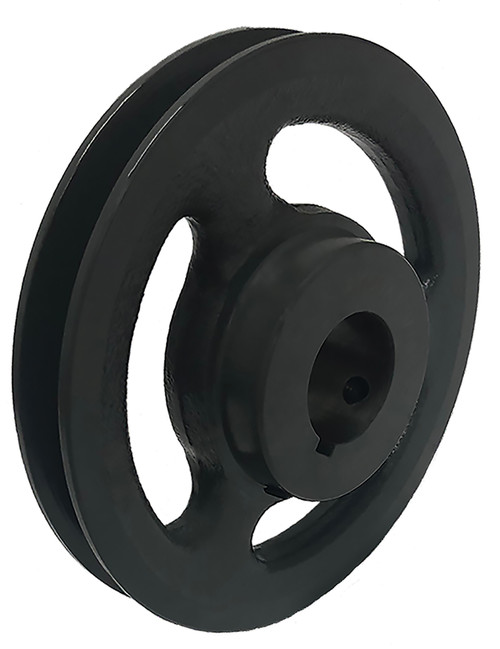

AK41x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries AK41x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number AK41x1
Type 2
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 3.950
Face Width (in) 0.750
Overall Length (in) 1.219
Hub Diameter (in) 1.875
Min. Bore (in) 0.500
MOQ 1
Pitch Dia. "A" 3.700
Pitch Dia. "3L" 3.360
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 1.70
Part Number Cross Reference AK41 1., AK41-1 PULLEY, 20180012, 121540, AK411, AK41-1, 00755090, MA40x1
Grooves 1
Set Screw Quantity 1
