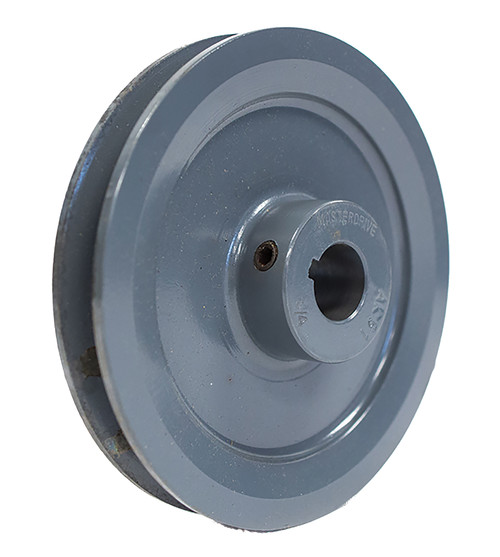

AK49x1, V-Belt Pulley

AK49x1

AK49x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries AK49x1 to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	AK49x1
Type	3
Material	Cast Iron
Bore Type	Finished Bore
Bore (in)	1.000
Bore Description	1 inch Finished Bore
Outside Diameter (in)	4.750
Face Width (in)	0.750
Overall Length (in)	1.219
Hub Diameter (in)	1.875
Min. Bore (in)	0.5
Unit System	Inch
MOQ	1
Pitch Dia. "A"	4.500
Pitch Dia. "3L"	4.160
Sheave Type	AK
For Belt Type	4L, 3L, or A
Weight (lb)	2.10
Part Number Cross Reference	AK49 1, AK49x1, AK49-1 PULLEY, 20180033, AK49 X 1 SHEAVE, AK491, AK49-1, MA48X1, AK49-1, AK49x1, AK49-1, MA48X1, AK49x1
Grooves	1
Set Screw Quantity	1
