AK84H, V-Belt Pulley

AK84H, AK84-QT, 20179593, MAL84

Product Details for AK84H

Comparable to: AK84H, AK84-QT, 20179593, AK84, MAL83, AK84QT

Click to Enlarge

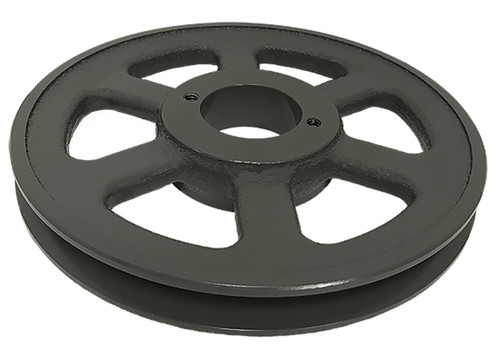

AK84H, V-Belt Pulley, Cast Iron

Learn more about AK84H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number AK84H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 8.250
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 8.000
Pitch Dia. "3L" 7.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 3.60
Part Number Cross Reference AK84H, AK84-QT, 20179593, AK84, MAL83, AK84QT
Grooves 1
