AK89H, V-Belt Pulley

AK89H, AK89-QT, 20179594, MAL89

Product Details for AK89H

Comparable to: AK89H, AK89-QT, 20179594, AK89, MAL88, AK89QT

Click to Enlarge

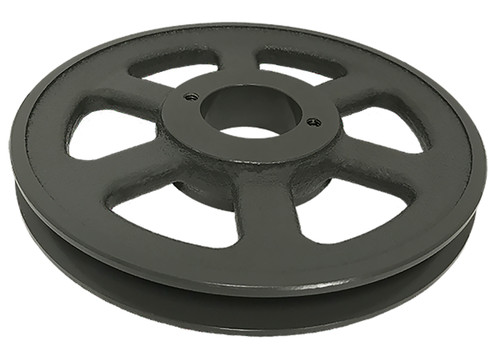

AK89H, V-Belt Pulley, Cast Iron

Learn more about AK89H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number AK89H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 8.750
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 8.500
Pitch Dia. "3L" 8.160
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 4.00
Part Number Cross Reference AK89H, AK89-QT, 20179594, AK89, MAL88, AK89QT
Grooves 1
