AK94H, V-Belt Pulley

AK94H, AK94-QT, 20179595, MAL94

AK94H

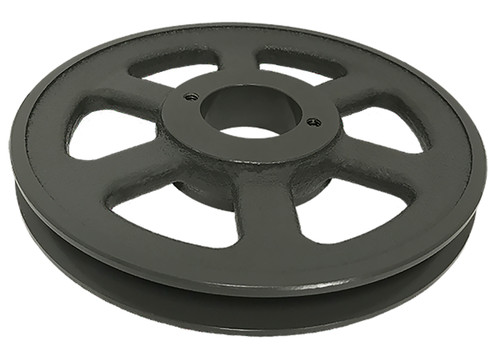

AK94H, V-Belt Pulley, Cast Iron

Learn more about AK94H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number AK94H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) Bored for H Bushing
Outside Diameter (in) 9.250
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 9.000
Pitch Dia. "3L" 8.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 4.40
Part Number Cross Reference AK94QT, AK94H, AK94-QT, 20179595, AK94, AK94-QT, AK94H, MAL93, AK94QT, AK94H, AK94H, AK94H
Grooves 1

Related Products

Comparable to: AK94QT, AK94H, AK94-QT, 20179595, AK94, AK94-QT, AK94H, MAL93, AK94QT, AK94H, AK94H, AK94H
