BK115H, V-Belt Pulley

BK115H, BK115-QT, 20179600, MBL112

Product Details for BK115H

Comparable to: BK115H, BK115-QT, 20179600, BK115, 00754473, MBL113, BK115QT

Click to Enlarge

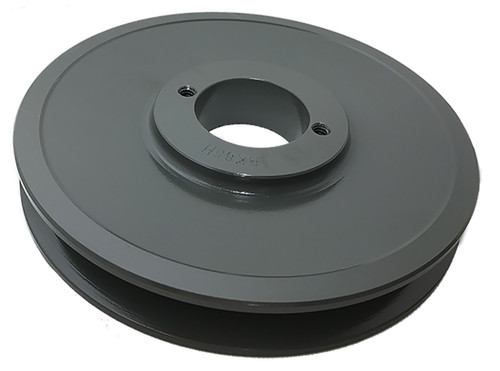

BK115H, V-Belt Pulley, Cast Iron

Learn more about BK115H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK115H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 11.250
Face Width (in) 0.875
Overall Length (in) 1.563
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 10.500
Pitch Dia. "B" 10.900
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 6.40
Part Number Cross Reference BK115H, BK115-QT, 20179600, BK115, 00754473, MBL113, BK115QT
Grooves 1
