BK160x1, V-Belt Pulley

BK160x1

BK160x1

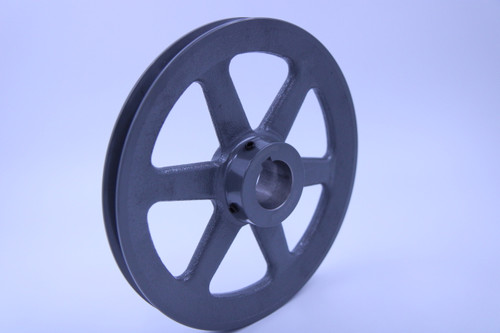

BK160x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries BK160x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number BK160x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 inch Finished Bore
Outside Diameter (in) 15.750
Face Width (in) 0.875
Overall Length (in) 1.531
Hub Diameter (in) 2.375
Min. Bore (in) 1.000
Unit System Inch
MOQ 1
Pitch Dia. "A" 15.000
Pitch Dia. "B" 15.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 14.20
Part Number Cross Reference BK160 1, BK160x1, BK160-1 PULLEY, 20180175, 121690, BK1601, BK160-1, MB158x1, BK160-1, BK160-1, BK160x1
Grooves 1
Set Screw Quantity 1

Related Products

Comparable to: BK160 1, BK160x1, BK160-1 PULLEY, 20180175, 121690, BK1601, BK160-1, MB158x1, BK160-1, BK160-1, BK160x1
