BK30H, V-Belt Pulley

BK30H, BK30-QT, 20179607, MBL31

Product Details for BK30H

Comparable to: BK30H, BK30-QT, 20179607, BK30, 00754226, MBL31, BK30QT

Click to Enlarge

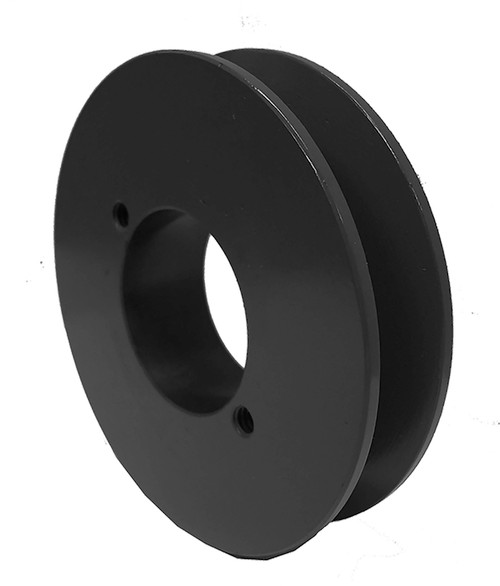

BK30H, V-Belt Pulley, Cast Iron

Learn more about BK30H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK30H
Type 1
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 3.150
Face Width (in) 0.813
Overall Length (in) 1.938
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 2.400
Pitch Dia. "B" 2.800
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 1.20
Part Number Cross Reference BK30H, BK30-QT, 20179607, BK30, 00754226, MBL31, BK30QT
Grooves 1
