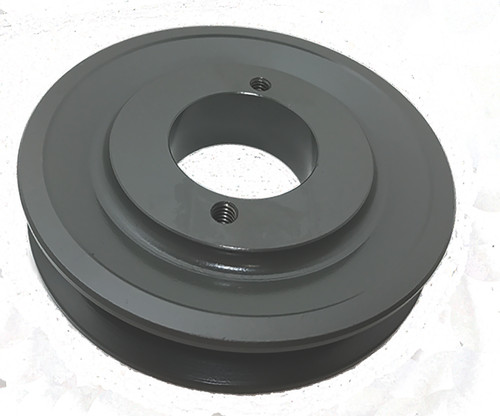

BK47H, V-Belt Pulley

BK47H

BK47H, V-Belt Pulley, Cast Iron

Learn more about BK47H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	BK47H
Type	2
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	4.450
Face Width (in)	0.875
Overall Length (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	3.700
Pitch Dia. "B"	4.100
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	2.20
Part Number Cross Reference	BK47QT, BK47H, BK47-QT, 20179613, BK47H SHEAVE, BK47, BK47-QT, BK47H, 00754283, MBL44, BK47H, BK47H, BK47H, MBL44, BK47H
Grooves	1
