BK50H, V-Belt Pulley

BK50H, BK50-QT, 20179614, MBL47

BK50H

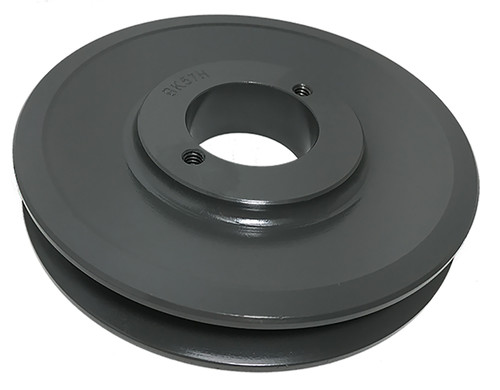

BK50H, V-Belt Pulley, Cast Iron

Learn more about BK50H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK50H
Type 2
Material Cast Iron
Bore Type QD
Bore Description Bored for H Bushing
Outside Diameter (in) 4.750
Face Width (in) 0.875
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 4.000
Pitch Dia. "B" 4.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 2.00
Part Number Cross Reference BK50QT, BK50H, BK50-QT, 20179614, BK50, BK50-QT, BK50H, 00754291, MBL48, BK50QT, BK50H, BK50H, BK50H
Grooves 1

Related Products

Comparable to: BK50QT, BK50H, BK50-QT, 20179614, BK50, BK50-QT, BK50H, 00754291, MBL48, BK50QT, BK50H, BK50H, BK50H
