BK52H, V-Belt Pulley

BK52H, BK52-QT, 20179615, MBL49

Product Details for BK52H

Comparable to: BK52H, BK52-QT, 20179615, BK52, 00754309, MBL50, BK52QT

Click to Enlarge

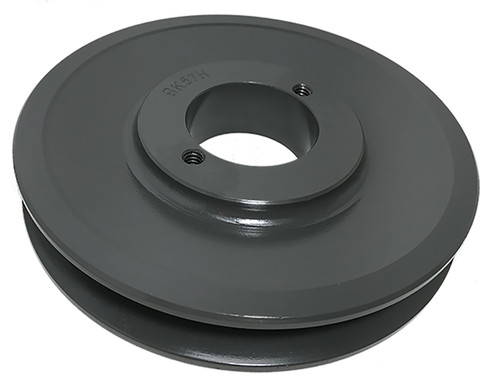

BK52H, V-Belt Pulley, Cast Iron

Learn more about BK52H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK52H
Type 2
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 4.950
Face Width (in) 0.875
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 4.200
Pitch Dia. "B" 4.600
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 2.10
Part Number Cross Reference BK52H, BK52-QT, 20179615, BK52, 00754309, MBL50, BK52QT
Grooves 1
