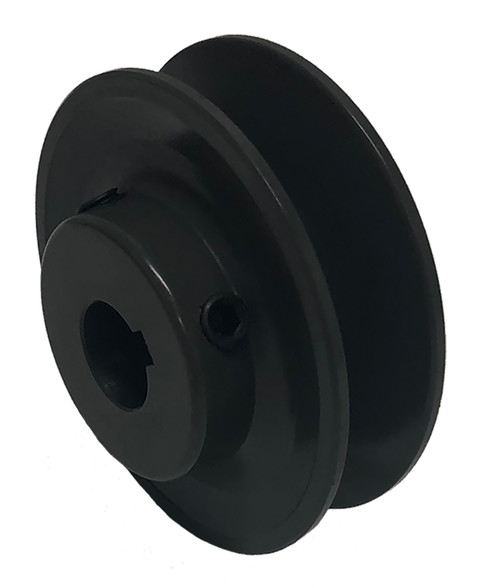

BK52x1, V-Belt Pulley

BK52x1

BK52x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries BK52x1 to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	BK52x1
Type	3
Material	Cast Iron
Bore Type	Finished Bore
Bore (in)	1.000
Bore Description	1 inch Finished Bore
Outside Diameter (in)	4.950
Face Width (in)	0.875
Overall Length (in)	1.281
Hub Diameter (in)	1.875
Min. Bore (in)	0.5
Unit System	Inch
MOQ	1
Pitch Dia. "A"	4.200
Pitch Dia. "B"	4.600
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	2.60
Part Number Cross Reference	BK52 1, BK52x1, BK52-1 PULLEY, 20180282, BK52 X 1 SHEAVE, BK521, BK52-1, 007596510, MB50X1, BK52-1, BK52x1, BK52-1, MB50X1, BK52x1
Grooves	1
Set Screw Quantity	1
