BK57H, V-Belt Pulley

BK57H, BK57-QT, 20179617, MBL54

Product Details for BK57H

Comparable to: BK57H, BK57-QT, 20179617, BK57, 00754325, MBL55, BK57QT

Click to Enlarge

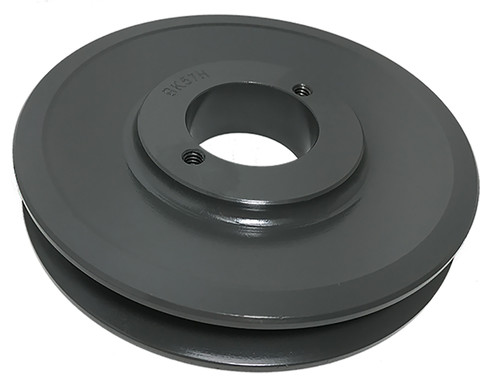

BK57H, V-Belt Pulley, Cast Iron

Learn more about BK57H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK57H
Type 2
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 5.450
Face Width (in) 0.875
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 4.700
Pitch Dia. "B" 5.100
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 2.70
Part Number Cross Reference BK57H, BK57-QT, 20179617, BK57, 00754325, MBL55, BK57QT
Grooves 1
