BK57x1, V-Belt Pulley

BK57x1

BK57x1

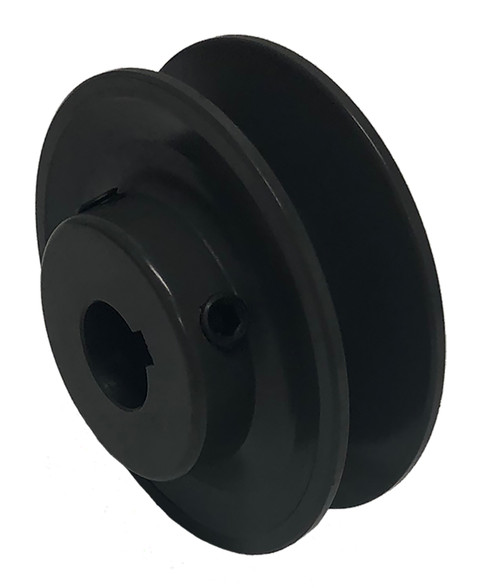

BK57x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries BK57x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number BK57x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 5.450
Face Width (in) 0.875
Overall Length (in) 1.281
Hub Diameter (in) 1.875
Min. Bore (in) 0.625
Unit System Inch
MOQ 1
Pitch Dia. "A" 4.700
Pitch Dia. "B" 5.100
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 2.90
Part Number Cross Reference BK57 1, BK57x1, BK57-1 PULLEY, 20180296, 120902, BK571, BK57-1, MB55x1 , BK57-1, BK57-1, BK57x1
Grooves 1
Set Screw Quantity 1

Related Products

Comparable to: BK57 1, BK57x1, BK57-1 PULLEY, 20180296, 120902, BK571, BK57-1, MB55x1 , BK57-1, BK57-1, BK57x1
